Re: commodore 8032 64k ext ram schematics

From: Ethan Dicks <ethan.dicks_at_gmail.com>
Date: Mon, 29 Sep 2014 17:48:36 -0400
Message-ID: <CAALmimmFTw3QFSDy3k+Mootf4fNtRbCxMJ5xuHfzhB1nmdes-A@mail.gmail.com>
On Sun, Sep 28, 2014 at 7:29 AM, didier derny <didier@aida.org> wrote:
> I checked zimmers for hours, no way to find the schematics
> For the cbm 8032 64k extension board
>
> I guess it is on simmers but I can’t find it

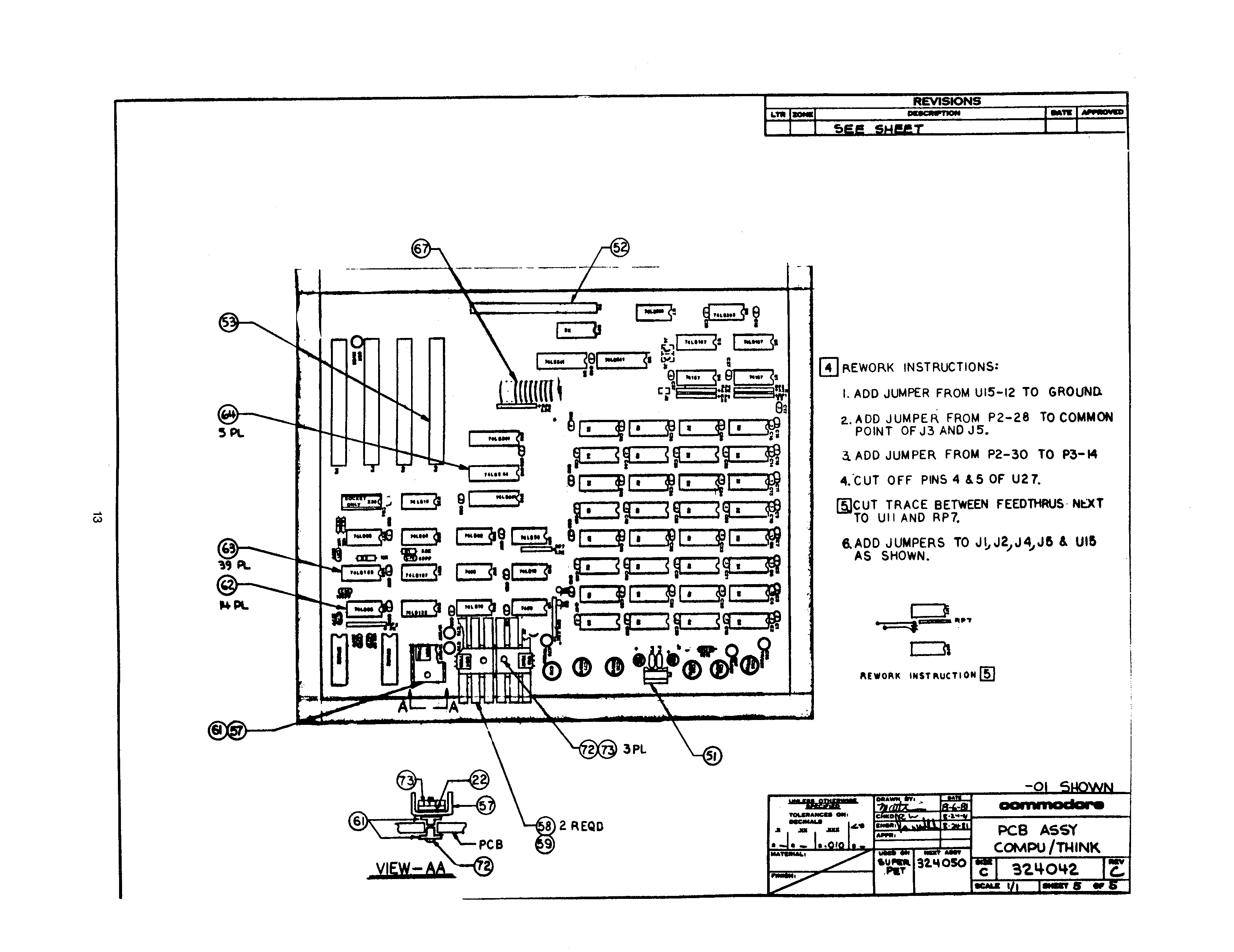

This one?

http://www.zimmers.net/anonftp/pub/cbm/schematics/computers/pet/SuperPET/324042-5.gif

Look in that dir at several of the GIFs... parts lists, schematic, etc.

-ethan
