Re: General 6809 card for 6502 machines

I used this one: (in fact the first I found)

http://www.zimmers.net/anonftp/pub/cbm/schematics/computers/pet/SuperPET/324037-1.gif

I find strange to see a 6809 with using a 1Mhz clock...
I would love to have one to check on the real board...
I've never found this board at a decent price on ebay...

that's why I was thinking to rebuild one
I'm actually on a reproduction of the 8032 64k extension



Le 18/10/2017 à 13:10, Baltissen, GJPAA (Ruud) a écrit :
> Hallo Didier,
>
>
>> not on a 6809E  ...
> You are correct.
>
> My excuses for my error:

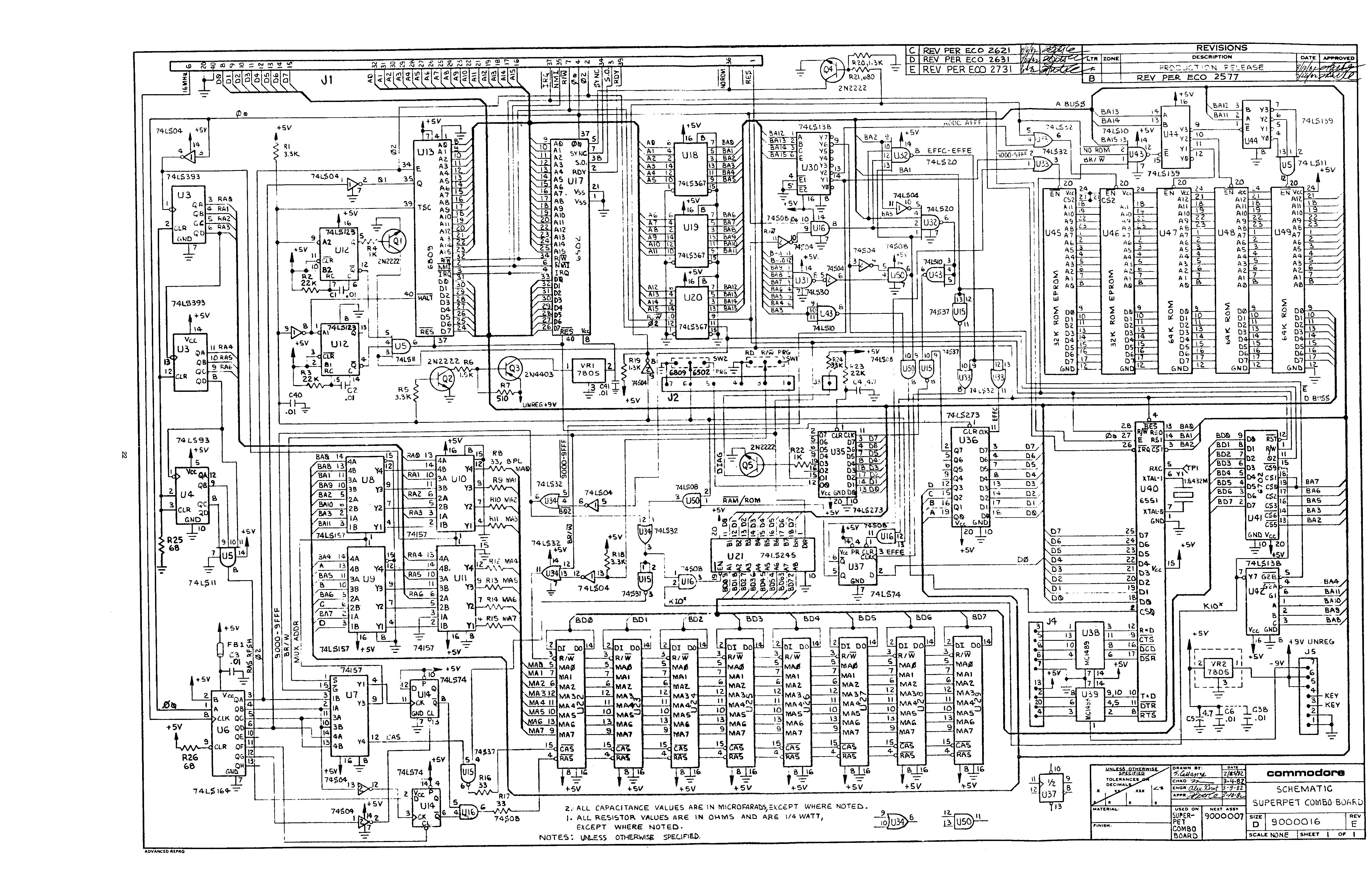

> - The schematic I use:  http://www.zimmers.net/anonftp/pub/cbm/schematics/computers/pet/SuperPET/9000016.gif  mentions a 6809. But, after some looking around, the part list  and http://www.zimmers.net/anonftp/pub/cbm/schematics/computers/pet/SuperPET/324037-1.gif mention a 6809E indeed.
> - Most weird then:  https://en.wikipedia.org/wiki/Motorola_6809  : " The 6809 was used in Commodore's dual-CPU SuperPET computer, "
>
>
> Met vriendelijke groet / With kind regards, Ruud Baltissen
>
> www.Baltissen.org
>
>
>
>
